PO 330 Supercharged

[cartang]

I have this code x 1 month , today My mechanic changed the 2 two knock sensors he installed the GM sensor kit he splice in the harness like the instructions said, we went for a test drive 2 milles the dumm code came back . Any any idea what it came wrong . Any solution. Thanks ahead for the answers. same code , can be the wires the sensors so much frustation.
Camry 99 SC , Jim fuel system upgrade , Walbro pump 198 gph.
Mr Akora any ideas please.

[akora12]

In my case, I cut the factory harness back too far when making the splice. There's a plastic encasing with a shielded ground wire that your splice connection can't touch. I tried re-shielding the ground on each wire, but that still didn't work. I ended up having to buy another OEM harness, part #82219-07010. It was around $30 retail.

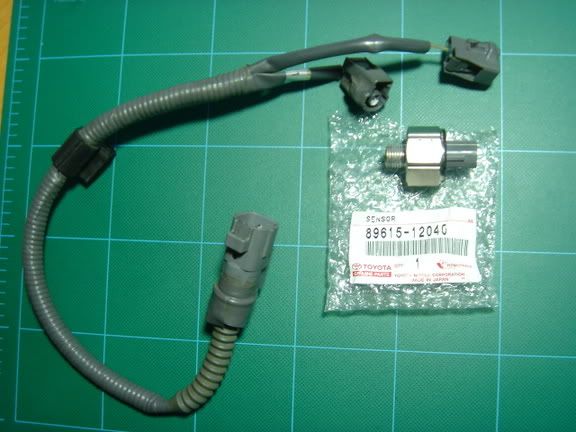

This is siennasc98's photo, but it shows the same harness:

[cartang]

Questions: did you installed your GM kit before , or are you going to reinstall with the new harness . Like I said the mechanic installed the GM sensors today then after 3 milles it came the PO 330. I will get the harness, Do you think the GM sensors are ok or do I need a new ones. T hanks keep us update

[akora12]

I tried installing the GM sensors with the screwed up harness, which obviously didn't work. After ripping my engine apart 3 more times to find out my harness was junk, I relocated the OEM sensor with the new harness and sold the GM kit. Now, if my sensor goes I won't have to tear apart my engine again.

I have no way of knowing if your GM sensors are bad, but I know they can be tested. I would ask your mechanic if his splices were before the plastic encasing.

[Slut]

I had the samep roblem.. rippn it apart time and time just to find out the cheap crap connectors suck that pop on.. just out of curiousity where do you get an relocate kit and where does it get installed.

thanks

[cartang]

I will ask how he splice it .

[akora12]

I had the samep roblem.. rippn it apart time and time just to find out the cheap crap connectors suck that pop on.. just out of curiousity where do you get an relocate kit and where does it get installed.

thanks

There's no kit for the relocation, it's custom. King (eye8pussies) wrote some info about it on TN if you're interested. As long as you're comfortable with a cutting wheel and tap, you'll be fine.
